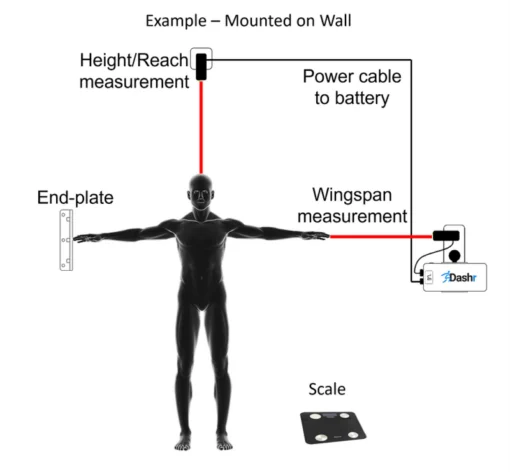

Diagram of a person with arms outstretched at the Dashr Biostation for Height/Reach measurement. Includes a floor scale, power cable connected to a battery, and labels like End-plate and Wingspan measurement.
A person in athletic wear stands against a height measurement board with arms outstretched. Two individuals, one holding a clipboard, observe nearby on the running track where a Dashr Biostation is set up.
The Dashr Biostation features a diagram of a standing figure with outstretched arms, showing height/reach and wingspan measurements. Labeled elements include power cable routing and an end-plate with clamp, along with a scale and the Dashr logo.
The Dashr Biostation provides height and wingspan measurement with a mounted rack. It displays height as a person standing upright, and wingspan with arms extended horizontally, with a scale underneath.
The Dashr Biostation tablet shows a biometrics app for user Chase Pfeifer, displaying wingspan, height, and weight. Options to save or clear data appear, alongside hold to reset buttons for each measurement.
Image showing components of the Dashr Biostation: a wooden clipboard, jump module, vertec coupler, battery with power cable, and mini tripod. Each item is labeled and displayed on a white background.
A black Dashr Biostation digital bathroom scale features four silver circular corner sensors, with the Dashr brand name near the top and a Bluetooth logo at the bottom.
Two black rectangular Dashr Biostations with logos mounted on a metal stand, featuring connected cables for power or data transfer.
The Dashr Biostation, a compact black device featuring the Dashr logo in white and blue text, is mounted on a white bracket with four screws.
Close-up of the Dashr Biostations white L-shaped bracket with three evenly spaced metal clips. It features two holes on each side, likely for mounting.
Diagram of the Dashr Biostation: a vertical strip with four square sockets. To the right, two removable plates have arrows and contain two circular and two square connection points for attaching to the strip.
The Dashr Biostation includes two black adjustable camera mounting clamps with screw fittings and knobs, ideal for attaching cameras to flat surfaces or poles. They boast a sturdy metal build and flexible joints for optimal positioning.
A black and silver carrying case with a top handle is shown. The front displays a blue logo, the words Dashr Biostation in white, and the website www.dashrsystems.com.
Diagram of a person with arms outstretched at the Dashr Biostation for Height/Reach measurement. Includes a floor scale, power cable connected to a battery, and labels like End-plate and Wingspan measurement.
A person in athletic wear stands against a height measurement board with arms outstretched. Two individuals, one holding a clipboard, observe nearby on the running track where a Dashr Biostation is set up.
The Dashr Biostation features a diagram of a standing figure with outstretched arms, showing height/reach and wingspan measurements. Labeled elements include power cable routing and an end-plate with clamp, along with a scale and the Dashr logo.
The Dashr Biostation provides height and wingspan measurement with a mounted rack. It displays height as a person standing upright, and wingspan with arms extended horizontally, with a scale underneath.
The Dashr Biostation tablet shows a biometrics app for user Chase Pfeifer, displaying wingspan, height, and weight. Options to save or clear data appear, alongside hold to reset buttons for each measurement.
Image showing components of the Dashr Biostation: a wooden clipboard, jump module, vertec coupler, battery with power cable, and mini tripod. Each item is labeled and displayed on a white background.
A black Dashr Biostation digital bathroom scale features four silver circular corner sensors, with the Dashr brand name near the top and a Bluetooth logo at the bottom.
Two black rectangular Dashr Biostations with logos mounted on a metal stand, featuring connected cables for power or data transfer.
The Dashr Biostation, a compact black device featuring the Dashr logo in white and blue text, is mounted on a white bracket with four screws.
Close-up of the Dashr Biostations white L-shaped bracket with three evenly spaced metal clips. It features two holes on each side, likely for mounting.
Diagram of the Dashr Biostation: a vertical strip with four square sockets. To the right, two removable plates have arrows and contain two circular and two square connection points for attaching to the strip.
The Dashr Biostation includes two black adjustable camera mounting clamps with screw fittings and knobs, ideal for attaching cameras to flat surfaces or poles. They boast a sturdy metal build and flexible joints for optimal positioning.
A black and silver carrying case with a top handle is shown. The front displays a blue logo, the words Dashr Biostation in white, and the website www.dashrsystems.com.

Dashr Biostation

$1,800.00

-

The Dashr | BioStation is a powerful tool to speed up biometric data collection and increase accuracy and consistency. The BioStation can be used to measure height, reach, and wingspan by mounting the Dashr | Jump modules in strategic locations. Weight is measured through a Bluetooth enabled scale.

With the Jump system included in this purchase, you can also use this to measure vertical, approach vertical, and broad jumps!

SKU: DA-Biostation Category:

BioStation is designed to measure height, weight, reach, and wingspan. All of these measurements can be captured in under 40 sec and automatically saved to your account.​

​

The BioStation leverages our Jump technology and allows your hardware to provide more value to you. Quickly and efficiently record the biometrics of your athletes. In order to capture height, reach, and wingspan, a Jump module is mounted above the athlete and another is mounted beside the athlete. When combined with our new integrated Scale, all of the athlete’s biometrics can be gathered and saved to your account.

​

One of the biggest advantages that the BioStation provides to your program is the ability to reuse the Jump modules for measuring drills such as Vertical and Broad Jump. This helps to lower the necessary investment and allows you to focus on what can help your team the most.



Installation and operation instructions



** This product requires an Android (API 21 or newer) or iOS (version 10.0 or newer) compatible device which is not included with this purchase.  A network is not needed to utilize the Dashr system, therefore a dedicated device can be purchased elsewhere for use with the Dashr timing systems.  If multiple drills are run simultaneously, each drill requires it’s own mobile device to run the Dashr app.

Weight 18 lbs
Dimensions 18 × 14 × 8 in
