Description
The Moxy 3-Sensor Bundle is intended for training centers that are using Moxy for assessments and for researchers that want to monitor a multiple sites. It can be used to monitor SmO2 and THb on a single superficial muscle anywhere on the body.

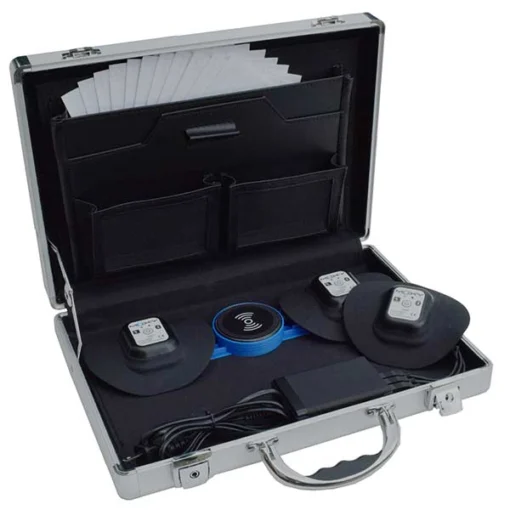

This bundle includes:
- Three Moxy Sensors with Light Shields
- Three Wireless Charger with a 5 Port USB Power Supply
- Six packs of Light Shield Adhesive Attachments
- Six packs of Small Adhesive Attachments
- A 3-Sensor Storage Case
Live Data Display
Please order your live data display option separately. The sensor can be used without a live data display but we recommend having a live data display method.
Sensor Specifications
| Measurement | SmO2 (Muscle Oxygen Saturation) and THb (Total Hemoglobin) in the capillaries and tissue of muscle. |
| Depth | Measures through up to 0.6” (15mm) of skin and fat. |
| Update Rate | 0.5 Hz to 2 Hz |
| Smoothing | 10 seconds or None. |
| Physical Size (with Light Shield) | 5.0 x 4.5 x 1.2 in (128 x 115 x 30 mm) |
| Physical Size (without Light Shield) | 2.4 x 2.0 x 0.6 in (62 x 52 x 15 mm) |
| Weight (with Light Shield) | 2.1 oz (59 g) |
| Weight (without Light Shield | 1.2 oz (48 g) |
| Battery Life | 4 hours Standard (7 hours Low Power Mode) |
| Wireless Data Transmission | ANT+ MO2 Profile and BLE |
| Data Storage | 10,000 data points stored on sensor – Downloaded via web app. Over 5 hours in default update rate |
| Environment | 40°F (15°C) to 95°F (35°C) ambient conditions, Water and Sweat Resistant. |
| Weight | 2 lbs |
|---|---|
| Dimensions | 11 × 5 × 3 in |
| Software | None, PeriPedal, PerfPro |
1 year
Need help finding the right tool for you?
Call, text us 925-461-5990 or email us for assistance
Fill out the form below, and one of our experts will reach out to you shortly.
Details
Description
The Moxy 3-Sensor Bundle is intended for training centers that are using Moxy for assessments and for researchers that want to monitor a multiple sites. It can be used to monitor SmO2 and THb on a single superficial muscle anywhere on the body.
This bundle includes:
- Three Moxy Sensors with Light Shields
- Three Wireless Charger with a 5 Port USB Power Supply
- Six packs of Light Shield Adhesive Attachments
- Six packs of Small Adhesive Attachments
- A 3-Sensor Storage Case
Live Data Display
Please order your live data display option separately. The sensor can be used without a live data display but we recommend having a live data display method.
Sensor Specifications
| Measurement | SmO2 (Muscle Oxygen Saturation) and THb (Total Hemoglobin) in the capillaries and tissue of muscle. |
| Depth | Measures through up to 0.6” (15mm) of skin and fat. |
| Update Rate | 0.5 Hz to 2 Hz |
| Smoothing | 10 seconds or None. |
| Physical Size (with Light Shield) | 5.0 x 4.5 x 1.2 in (128 x 115 x 30 mm) |
| Physical Size (without Light Shield) | 2.4 x 2.0 x 0.6 in (62 x 52 x 15 mm) |
| Weight (with Light Shield) | 2.1 oz (59 g) |
| Weight (without Light Shield | 1.2 oz (48 g) |
| Battery Life | 4 hours Standard (7 hours Low Power Mode) |
| Wireless Data Transmission | ANT+ MO2 Profile and BLE |
| Data Storage | 10,000 data points stored on sensor – Downloaded via web app. Over 5 hours in default update rate |
| Environment | 40°F (15°C) to 95°F (35°C) ambient conditions, Water and Sweat Resistant. |
Shipping
| Weight | 2 lbs |
|---|---|
| Dimensions | 11 × 5 × 3 in |
| Software | None, PeriPedal, PerfPro |
Warranty
1 year
